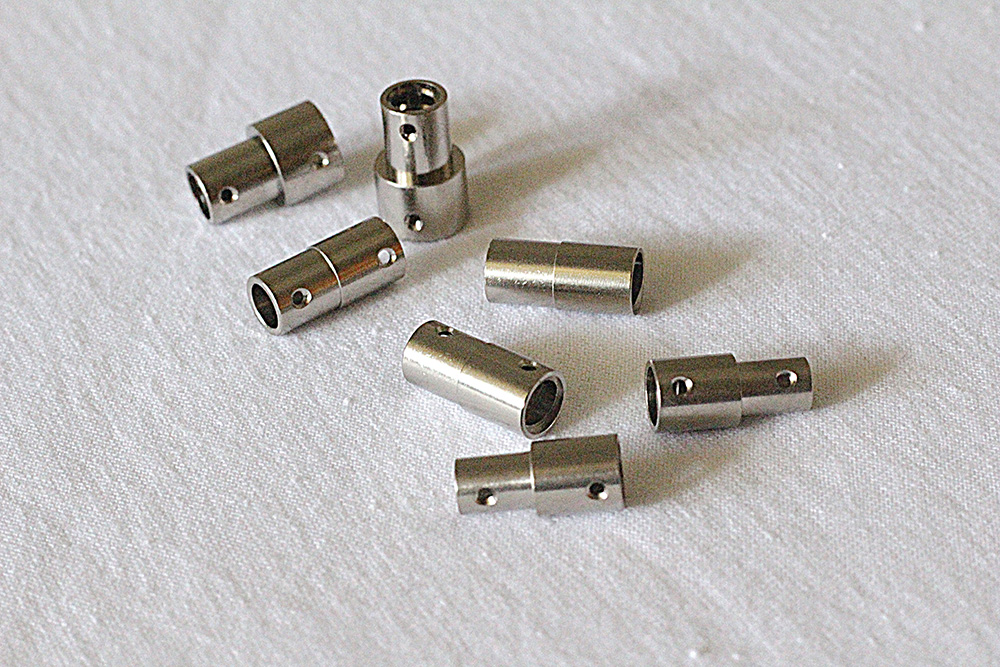

Cylindrical Head

(KSxNS-xx)



Prevents damage to optical fibers and cables. Used for termination of tube to sensor head. Easy assembly and removal of sensor from tube. Can resist high heat environments.



Standard Product:

  • Screw Type End Fitting
  • Material: Nickel plated on brass
  • Can be used with Square-Lock Casing Type-A
  • Fastened to the sensor head

Attachment Methods:

  • Machine-screwed
  • Pin-locked

Services Available Upon Request:

  • Custom end fittings are available upon request. Please Contact Us.

Pre-assembled conduits with the proper connectors and inserts already affixed to the Hagitec conduits or tubes are available upon request.

Common Applications:

  • Proximity switches
  • Photoelectric switches
  • Heat-proof temperature sensors

Stock Level: Standard stock item

 Features and Attributes:

  • Secured by pins after being screwed onto tube
  • Easy to screw on and off as needed
  • Easy assembly and removal of sensor from tube
  • Suitable for high temperature applications
  • For termination of tube to sensor head
  • Prevents damage to optical fibers and cables

Common Applications:

  • Sensors and cable protection in measurement devices, sensors, robotics, automation equipment, and arcade game machines.

Ordering:

    • End fittings can be ordered separately or pre- assembled to a Hagitec conduit.
    • Pin Type: 1.5mm L standard slotted screw, 2mm L. slotted screw with a pointed tip, 2.5mm L hex head lag screw
    • Part Number Ordering Guide: (Type A) + (Optional B) / (Type C) x (Length D) / (Type E)

Technical Specs:



Model (Part Number) ØA (mm) B (mm) D (mm) ØE (mm) F set pin
(M x pitch) (mm)
ØH (mm) G matching tube fig Approx Weight (g/pc) Stock
KS3NS-2.8 7 17 9 2.9 M2 x 0.4 5 KS-3N · KS-3.2N 7 2.3
KS4NS-3 8 17 9 3.1 M2 x 0.4 5 KS-4N 7 2.7
KS4NS-3.8 8 17 9 3.9 M2 x 0.4 6 KS-4N 7 2.8
KS4NS-5.4 8 17 9 5.5 M2 x 0.4 7.5 KS-4N 7 3.0
KS34NS-8 8 17 9 8.1 M2 x 0.4 11 KS-4N 8 4.6
KS4NS-9.4 8 17 9 9.5 M2 x 0.4 12 KS-4N 8 4.8
KS5NS-5 9 12 5 M2 x 0.4 9 KS-5N 8 3.0
KS6NS-5.4 11 17 9 5.5 M2 x 0.4 8 KS-6N 7 5.1
Standard stock quantity will be 10 to 1000 pcs. (Depending on item)
Cylindrical Head Connectors match Square-Lock Type A conduits.
Please contact us for cylindrical connectors matching other tubes.

Assembly Guide: PDF Here
